Coax armoured tow cable
NOVACAVI
1SSA4

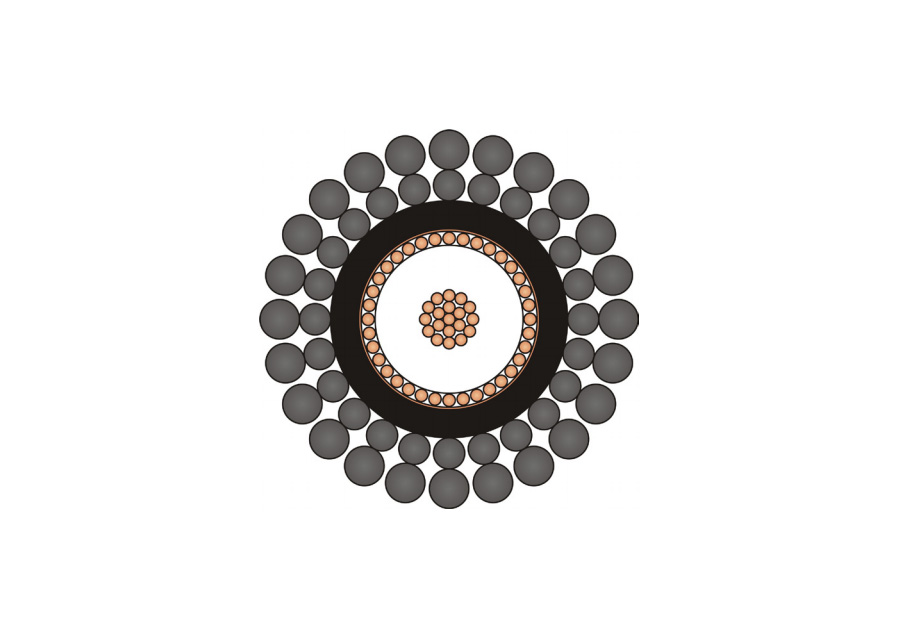

CONSTRUCTION DETAILS
1 X COAX 40 OHM:
- Tinned copper conductor 19x0,36 mm
- Bare copper spiral shield 12 AWG (3,22 mm2), nominal coverage 90 %
- Copper/polyester tape
- HDPE sheath
- 1st layer of preformed galvanized steel wire armour
- 2nd layer of preformed galvanized steel wire armour
- Nominal overall diameter 11,50 mm
KEY FEATURES
- Preformed armour
- Tow cable
- Coaxial cable
